Motorcycle Engine Tools
text and pictures by Mark Trotta
Aside from basic hand tools and a torque wrench, tools needed to rebuild a motorcycle engine include a micrometer, dial indicator, feeler gauge, piston ring installer, and some specialty tools for your make and model. Other things to have is a digital camera, curiosity, time, and common sense.
Engine Measuring Tools
One of the first steps of a proper engine build is inspecting and measuring old and worn parts. Tools needed include a digital caliper, micrometer(s), dial indicator, dial bore gauge, and feeler gauge.
Micrometer
Common micrometer sizes for engine building include an Outside Micrometer with 1-2" Measuring Range and Outside Micrometer with 0-1" Measuring Range.
Digital Caliper
Digital calipers are more expensive than vernier or dial calipers, but they are easier to use and quicker to read.
Read: Best Digital Caliper For Engine Building
***************************
Dial Indicator With Magnetic Base
Having a dial indicator allows you to check end play, flywheel run-out, up-and-down movement on connecting rods, and many others. Most have increments of .001" on a 0" to 1" scale. They can be mounted by clamp or magnetic base.
Checking thrust clearance on a Harley 45 Flathead with magnetic-base dial indicator.
Shop: Magnetic Base with Dial Indicator
Engine clearances are crucial, and learning to correctly read precision instruments takes some time. Experienced mechanics always double-check their specs. First-time builders should measure a dozen times (or more) before trusting their readings.
***************************
Small Hole Gauge
To accurately measure the inside diameter of valve guides (and other small bores), a small telescoping gauge is required.
These are also called small-bore gauges, and come in varying sizes.
***************************

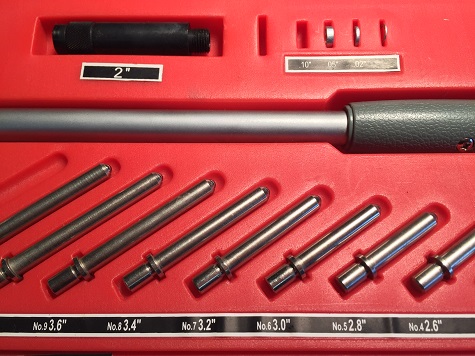

Dial Bore Gauge
To accurately measure the inside diameter of a cylinder, a bore gauge is needed. The one I use has a range of two to six inches, a depth of six inches, and the round dial has .001" increments.
Shop: Dial Bore Gauge
Remember that micrometers, dial indicators, and dial bore gauges are precision measurements, and need to be treated as such. For consistent and reliable results, keep them clean and out of harm's way.
***************************

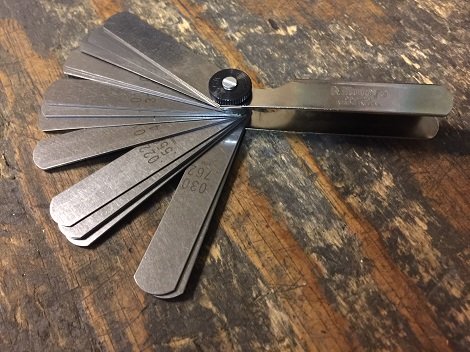

Feeler Gauge
A feeler gauge, or gap gauge, is needed for checking valve tolerances, ignition point gaps and other critical measurements. They're made up of thin metal blades. Each blade is a different width of precise thickness, and will be marked in either thousandths of an inch, or millimeters, or both.
Shop: Feeler Gauge
The blades usually range from .0015" to .035" (.038 to .889mm) in width. And if needed, you can also pair two blades together.
Long feeler gauges may be required for valve adjustments on some engines.
***************************
Cylinder Boring and Honing
If you're restoring an old motorcycle engine, boring a cylinder back to round may require removing anywhere from .003" to .010" or more of metal. Professional machine shops have large, expensive, dedicated machines to perform all kinds of cylinder boring.
The same process can be done in your home garage, but will take considerably more time. By using a rigid honing device and a slow-speed drill, high-quality motorcycle engine cylinder boring is possible.
Read: DIY Motorcycle Cylinder Boring
***************************

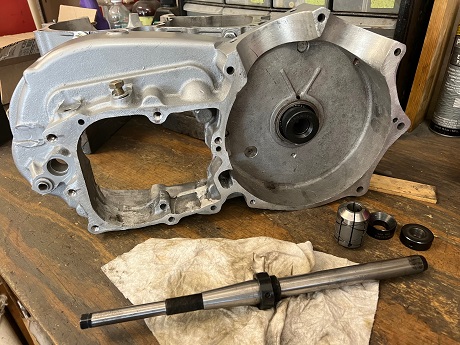

Harley Pinion Shaft Honing/Lapping Tool
Honing/lapping motorcycle engine cases assures precision alignment of flywheel shafts.
This tool fits Harley Big-Twins 1955-1998 and Ironhead Sportsters 1957-1976. Also fits Harley Flathead UL models 1937 through 1948.
Read: Harley Crankcase Lapping Tool and Usage
***************************

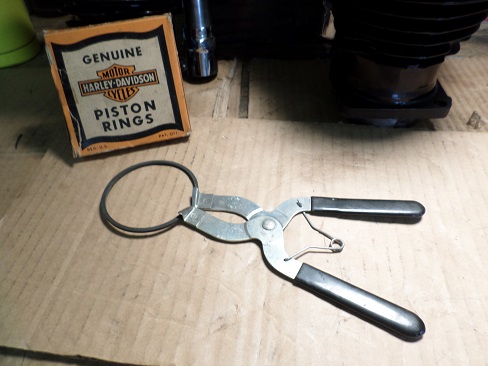

Piston Ring Expander
Don't be tempted to install rings into the piston grooves by hand. It's a bad idea, because rings get deformed by the twisting action, which may cause sealing problems. A piston ring expander is an inexpensive tool.
Shop: Piston Ring Spreader Tool
Piston Ring Installer
To install pistons back into the cylinders, a piston ring installation tool is needed. A clamp-style ring compressor is the least expensive style, but consider investing in a piston ring installer set. Most sets includes a half a dozen popular sizes you can use for other engine projects.
Shop: Piston Ring Compressor Set
***************************
Valve Spring Compressor
This is the tool you need for removing and installing valves and valve springs. Although it was designed to fit pre-Evo Harley Big-Twins and Sportsters, it's really a universal tool.
Shop: Valve Spring Compressor
The one in the picture is a V-Twin 16-1788. It's a copy of the Harley-Davidson tool #96600-36.
***************************

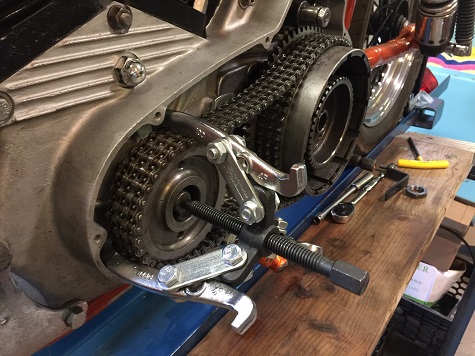

Gear Pullers
Removing gears usually requires a gear puller. There are two-jaw and three-jaw gear pullers, and they're offered in different sizes.
Having several gear pullers in your tool box gives you more versatility.
***************************
Snap Ring Pliers
If you're rebuilding an engine or a transmission, snap ring pliers are a must-have tool.
Convertible snap ring pliers can be used for either internal or external E-clips. Most good brands (like Channellock) come with an assortment of tips.
***************************
Slide Hammer Set
Shop: GearWrench Slide Hammer Puller Set
***************************

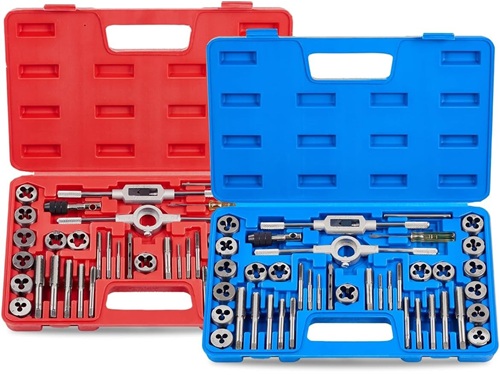

Tap And Die Set
If you're rebuilding an old engine that's been neglected, I would rate a tap and die set as a necessity. With proper technique and lubricant, taps and dies will cut mild carbon and alloy steel, cast iron, aluminum, brass, and bronze.
Shop: Tap and Die Set
***************************
Torque Wrench (Foot-Pounds)
For those who haven't used a 'click-style' torque wrench before, you set the desired value on the handle scale, then begin tightening the fastener. When the preset torque value is reached, the wrench will emit a "click" that will be heard and felt.
Shop: 1/2" Torque Wrench (10-150 ft/lbs)
A 1/2" drive torque wrench will generally cover your needs up to 150 foot/pounds. It is recommended to torque bolts in increments; example, first pass 20 ft/lbs, then 40 ft/lbs, then 60 ft/lbs, etc. until desired torque value is reached.
Stay away from beam-style torque wrenches. Most are inaccurate, and all of them hard to read while you're using it.
Torque Wrench (Inch-Pounds)
On the lower end of the scale are 1/4" drive torque wrenches. These are nice to have for smaller bolts that require less torque.
Shop: 1/4" Torque Wrench (20-200 in/lbs)
***************************

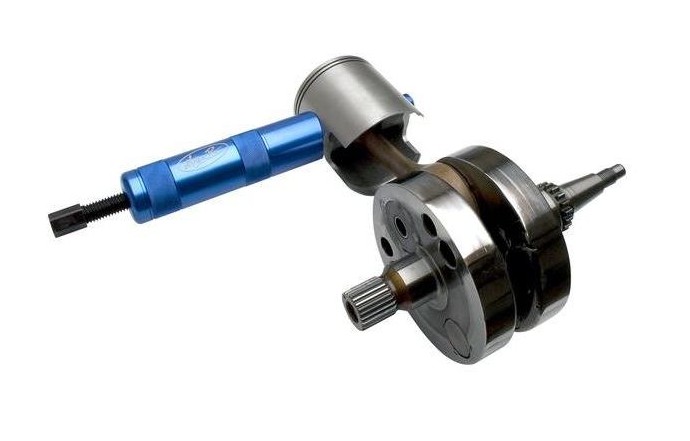

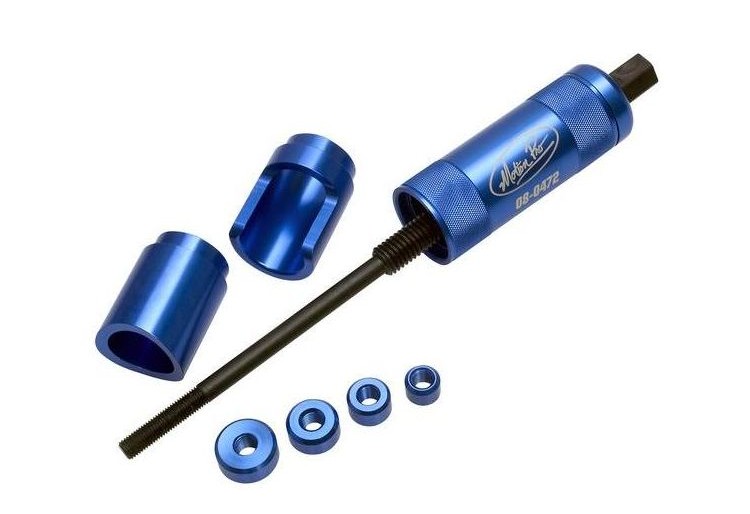

Specialty Tools
Every type of motorcycle engine will require a specialty tool or two. The tool in the picture below is for installing piston lock-rings in early Harley-Davidson 45 flatheads. It lightly stretches the lock ring just enough to fit into the groove. The factory part number for this tool is 12052-32, and it's primary use is for 1932-1956 Harley-Davidson 45 models, but works for some other models as well.
***************************
DIY Engine Tools
If you don't have all the tools needed for your motorcycle engine build, you can either borrow them or buy them (new or used), but many can be fabricated. If you can cut, drill, and weld metal, consider making some the tools yourself.
Read: DIY Motorcycle Tools
After a Harley V-Twin flywheels are rebuilt, they need to be trued before being reinstalled into the cases. For this, you'll need either a lathe or a flywheel truing stand. A $900 truing stand is a nice luxury, but homemade units work just as well.
Read: DIY Flywheel Truing Stand
***************************
Flywheel Truing Stand
After a Harley flywheel assembly is rebuilt, it needs to be trued before being reinstalled in the cases. For this, you'll need either a lathe or a flywheel truing stand. A $900 truing stand is a nice luxury, but homemade units work just as well.
Read: DIY Flywheel Truing Stand
***************************

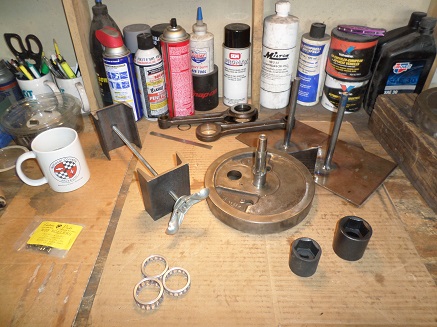

Harley Ironhead Engine Tools
Read: Ironhead Specialty Tools
***************************
Camera
Taking pictures before and after is extremely helpful during re-assembly. A digital camera is nice to have, but a smart-phone works just as well.
TIP: Put a with a screen protector on your phone!
***************************
